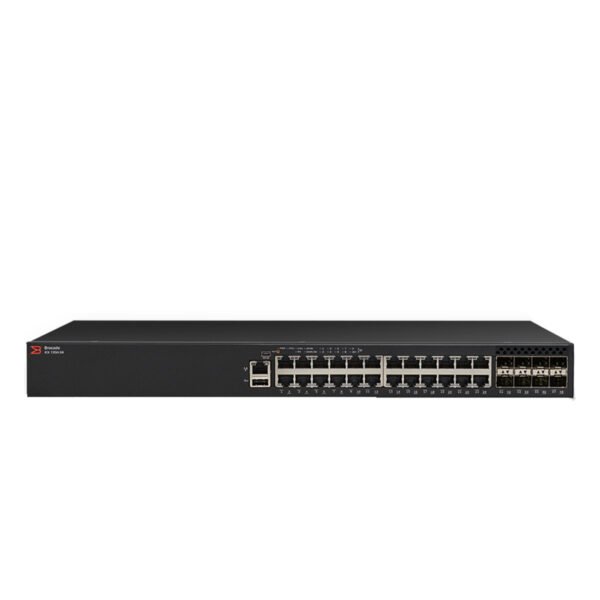

Brocade ICX 7250-24 Managed Switch
EGP4,100.00
- Number of Ports: 24 x 10/100/1000 Mbps RJ-45 ports , 8*1G SFP
- Power Over Ethernet (PoE): Non PoE
- Layer: Layer 2 and Layer 3
- Managed: yes
- Condition : Used
- Warranty: 6 months
3 in stock
The Brocade ICX 7250 series is a line of managed Layer 3 switches specifically designed to meet the performance, flexibility, and scalability demands of enterprise Gigabit Ethernet (GbE) access deployments. Moreover, this series delivers high-speed connectivity and advanced networking capabilities, making it an ideal solution for businesses seeking reliable and scalable network infrastructure.
For more details, you can find the datasheet on our website at the following link :
Brocade ICX 7250 series Data sheet
The Brocade ICX 7250-24 is an excellent choice for small to medium-sized enterprises, branch offices, and distributed campuses, offering enterprise-class functionality at an affordable price. Moreover, it delivers high performance and reliability, ensuring that businesses can scale their network infrastructure efficiently without compromising on quality or cost-effectiveness.
Key Features:
- High Performance: Delivers wire-speed, non-blocking performance across all ports, supporting latency-sensitive applications such as real-time voice/video streaming and Virtual Desktop Infrastructure (VDI).
- Scalability: Supports stacking of up to 12 switches, providing a total of 576×1 GbE ports per stack, with 80 Gbps of stacking bandwidth.
- Power over Ethernet (PoE): The base model does not support PoE. For PoE capabilities, consider the ICX 7250-24P model, which provides PoE+ support with a 370W power budget, enabling the powering of devices such as IP cameras and wireless access points without additional power supplies.
- Layer 3 Capabilities: Offers basic Layer 3 features, including static routing, to support more complex network topologies.
- Energy Efficiency: Supports IEEE 802.3az Energy Efficient Ethernet (EEE) standard, reducing power consumption during periods of low utilization.
- High Availability: Includes system-level high-availability features, such as dual hot-swappable, load-sharing power supplies and fans, ensuring continuous operation and minimizing downtime.
| Brand | Brocade |
|---|---|
| Model | ICX 7250-24 |
| Product Type | Managed Switch |
| Series | ICX 7250 |
| Power Over Ethernet (PoE) | Not supported |
| Ports | 24 x 10/100/1000 Mbps RJ-45 ports |
| Layer Support | Layer 2 , Layer 3 |
| Dimensions (H x W x D) | 1.72 inches x 17.32 inches) x 11.02 inches |
| Weight | 8.29 pounds (approximately 3.76 kg) |
| Rack Units (RU) | 1U |
| Default Power Supply | Internal power supply with 250W capacity (370W for PoE models) |
| Input voltage | AC: 100 to 240 VAC @ 50 to 60 Hz |
| Operating temperature | -5°C to 50°C/23°F to 122°F |
| Console Cable | Utilizes a Mini-USB to Serial cable for console access. |
| Media Type Supported | – 24 x 10/100/1000 Mbps RJ-45 Ports: Supports standard Ethernet cables for copper connections. |
| Processor &Memory | Multi-core processor with 2 GB DRAM and 512 MB flash memory |
| Fan | Single integrated fan with front-to-back airflow |
| Switching Capacity | 208 Gbps |
| Forwarding rate | 154 Mpps |
| MAC Address table size | Supports up to 16,384 MAC addresses. |
| Stacking | Supports stacking up to 12 switches with up to 480 Gbps of aggregated stacking bandwidth |
