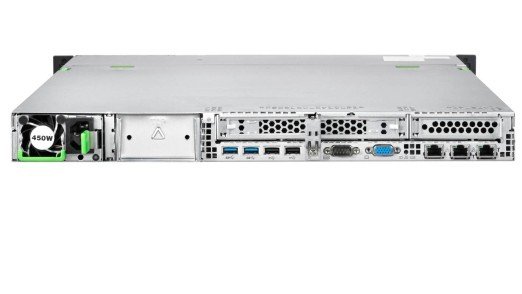

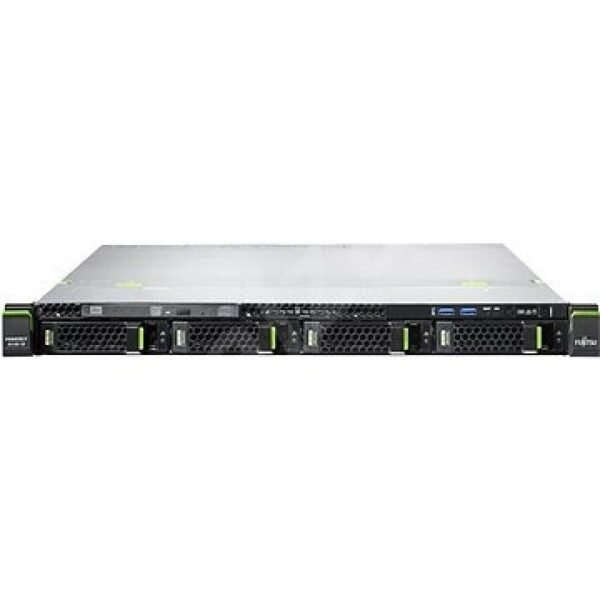

FUJITSU PRIMERGY RX1330 M1 Rack Server 4×3.5″
The FUJITSU PRIMERGY RX1330 M1 is a compact, mono-socket rack server designed to deliver a cost-effective solution without compromising on flexibility. It meets the demands of small budgets, while offering a broad range of optional features that allow for custom configurations. This server is ideally suited for file, infrastructure, and communication applications, providing excellent performance and scalability.
Features
- Cost-Effective: Designed to provide high performance on a budget, making it ideal for small businesses or entry-level server needs.
- Flexible Storage Options: Offers configurable storage options with up to 10 drives, ensuring flexibility for various data storage needs.
- Energy Efficient: Low power consumption with optional energy-efficient power supplies, reducing operational costs.
- Compact Design: A 1U rackmount server that saves space while offering strong performance.
- Easy Management: Simplifies server management with the integrated iRMC S4 remote management system.
- Scalability: Can be tailored with additional features like hot-plug power supplies, RAID controllers, and graphics options.
- Reliability: Includes features like optional redundant fans and power supplies for improved reliability and uptime.
Security
-
Trusted Platform Module (TPM) 1.2: Provides hardware-based encryption and secure boot for data protection.
-
Integrated Remote Management Controller (iRMC S4): Enables secure remote management and monitoring via IPMI 2.0.
-
BIOS Security: Includes ROM-based setup, recovery BIOS, and secure local updates to prevent tampering.
-
Remote Access Control: Restricts iRMC access to authorized users only.
-
Compliance: Meets global security standards like RoHS, WEEE, and CE for regulatory assurance.
-
Battery Backup: Ensures safe shutdown during power failures to protect against data loss.
For more details, you can view the data sheet on our website using the following link : Spec sheet
Form factor | 1U |
---|---|
Processor | 1 x Intel® Xeon® processor E3-1200 v3 product family / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel®Celeron® processor |
No. Of processor socket | 1 |
No. of fan | 4 |
Support graphic card | NVIDIA T400 OR T1000 |
Ram type | DDR3 |
Total Memory slots | 4 DIMMs slots |
Supported ram | 1 GB, 2 GB, 4 GB, 8 GB, 16 GB |
Max memory | 32 GB DDR3 Up to 1600 MHz |
PCle slots | Up to 3 PCIe slots and up to 10 hard disk drives |
Support Raid controller | Integrated RAID 0/1 or RAID 5/6 controller (option) |
Support hard drive | 4x 3.5-inch hot-plug SAS/SATA |
Network controller | 2 x Gbit/s Ethernet |
I/O Port | -USB 2.0 ports : 4 x (2x rear, 2x internal via UFM) (10x SFF base unit: 1x front, 2x rear, 2x internal) |
Power supply | 300W standard, 92% (Gold efficiency), 100-240V, 50 / 60Hz |
Remote managment | Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller) IPMI 2.0 compatible |
Operating system | VMware ESX hints: |
Dimensions | Height : 42.8 mm (1.69 in) |
Weight | Up to 13 kg |
Operation temperature | 10°C to 35°C (50°F to 95°F) |
Condition | Used |
Warranty | 1 year |
