HP Z800 Workstation
HP Z800 Workstation
  1. HP Z800 Workstation
  2. HP Z800 Workstation

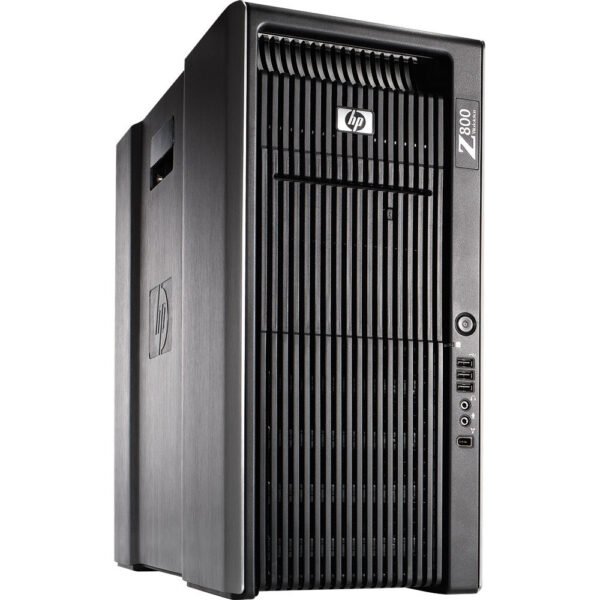

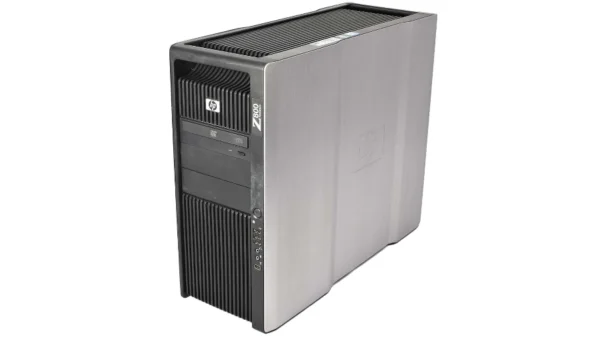

HP Z800 Workstation – Dual CPU v3 (CTO)

  • Brand: HP
  • Model: HP Z800
  • Condition: Used
  • Warranty: 1 year
Categories: , , Brand:

The HP Z800 is a top-tier professional workstation built to handle demanding workloads such as 3D rendering, video editing, CAD design, and scientific computing. With support for dual Intel Xeon processors, extensive memory capacity, and a wide range of expansion options, it offers powerful performance and high reliability for mission-critical applications.

Security:

The HP Z800 offers robust security through TPM 1.2 encryption, BIOS password protection, and chassis intrusion detection. Physical safeguards include a lock slot and padlock loop, with support for enterprise-grade encryption solutions.

 Features:

  • CPU: Dual Intel Xeon 5500/5600 series (up to 12 cores, 24 threads)

  • Memory: Up to 192GB ECC DDR3 RAM (12 DIMM slots)

  • Storage: Multiple SATA/SAS bays for SSDs and HDDs

  • Graphics: Supports NVIDIA Quadro & AMD FirePro GPUs

  • Expansion: PCIe slots with tool-free design for upgrades

  • Power Supply: 850W or 1050W high-efficiency units

  • Connectivity: USB 2.0, Gigabit LAN, audio, and legacy ports (serial, PS/2)

For more details, you can find the datasheet on our website at the following link: Spec sheet



processor

ntel® Xeon® Processor W5580 QC 3.20 GHz, 130W, 8M Cache, 6.4GT/sec QPI, DDR3 1333MHz, HT, Turbo
Intel Xeon Processor X5570 QC 2.93 GHz, 95W, 8M cache, 6.4GT/s QPI, DDR3 1333MHz, HT, Turbo
Intel Xeon Processor X5560 QC 2.80 GHz, 95W, 8M cache, 6.4GT/s QPI, DDR3 1333MHz, HT, Turbo
Intel Xeon Processor X5550 QC 2.66 GHz, 95W, 8M cache, 6.4GT/s QPI, DDR3 1333MHz, HT, Turbo
Intel Xeon Processor E5540 QC 2.53 GHz, 80W, 8M cache, 5.86GT/s QPI, DDR3 1066MHz, HT, Turbo
Intel Xeon Processor E5530 QC 2.40 GHz, 80W, 8M cache, 5.86GT/s QPI, DDR3 1066MHz, HT, Turbo
Intel Xeon Processor E5520 QC 2.26 GHz, 80W, 8M cache, 5.86GT/s QPI, DDR3 1066MHz, HT, Turbo
Intel Xeon Processor E5506 QC 2.13 GHz, 80W, 4M cache, 4.8GT/s QPI, DDR3 800
Intel Xeon Processor E5504 QC 2.00 GHz, 80W, 4M cache, 4.8GT/s QPI, DDR 3800
Processor cores

options for 4-core and 6-core
Processors count

2
Chipset

Intel® 5520
Form factor

Rackable Minitower
Memory type

DDR3
Memory slots

12 DIMM Slots
PCLe slots

2 PCIe x16 Gen2 Slots
2 PCIe x8 Gen2, 1 PCIe x4 Gen2, 1 PCIe x4 Gen1, 1 PCI Slot
Expansions slots

2 PCI Express Gen2 x16 slots (full-length, full-height)
2 PCI Express Gen2 x8 slots – with x8 connectors (full-length, full-height)
1 PCI Express Gen2 x4 slot – with x8 connector (half-length, full-height)
1 PCI Express Gen1 x4 slot – with x8 connector (full-length, full-height)
1 PCI 32bit/33MHz slot, (full-length, full-height)
1 Mechanical-only slot, supporting cards which mount only to the I/O bulkhead and not the
motherboard (half-length, full-height)
The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot.
Max memory

Supports up to 24GB using UDIMMs
Supports up to 192GB using RDIMMs
Graphics

Professional 2D
NVIDIA Quadro NVS 295 256MB
Entry 3D
ATI FirePro V3700 256MB PCIe
NVIDIA Quadro FX 380 256MB PCIe
NVIDIA Quadro FX 580 512MB PCIe
Mid-range 3D
NVIDIA Quadro FX 1800 768MB PCIe
ATI FirePro V5700 512MB PCIe
High End 3D
NVIDIA Quadro FX 3800 1.0GB PCIe
NVIDIA Quadro FX 4800 1.5GB PCIe
NVIDIA Quadro CX – The Accelerator for Creative Suite 4
NVIDIA Quadro FX 5800 4GB PCle
I/O port

Front I/O
3 USB 2.0, 1
Headphone Out, 1 Microphone
In, and 1 IEEE
1394a
Rear I/O
1 IEEE-1394a
6 USB 2.0
1 Serial
PS/2 keyboard and mouse
2 RJ-45 to integrated Gigabit LAN
1 Audio Line In, 1 Audio Line Out, 1
Microphone In; audio ports can be
retasked to function as line in,
line out, microphone, or headphone
Internal USB
3 USB 2.0 header
Drive bay

4 x 3.5” Sas, Sata
Storage options

HP SAS (Serial Attached SCSI) Hard Drives for HP Workstations
146 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive
300 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive
450 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive
SATA (Serial ATA) Hard Drives for HP Workstations
160 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive
250 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive
320 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive
500 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive
1 TB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive
160 GB 10K rpm SATA with NCQ 2.5" Hard Drive
300 GB 10K rpm SATA with NCQ 2.5" Hard Drive
Audio

Integrated Intel/Realtek HD ALC262 Audio
HP Thin USB Powered Speakers
Creative X-Fi Titanium PCIe Audio Card
Operating system

Genuine Windows Vista® Business 32-bit
Genuine Windows Vista® Business 64-bi
Genuine Windows Vista® Business 32-bit with downgrade to
Windows® XP Professional 32-bit custom installed
Genuine Windows Vista® Business
64-bit with downgrade to
Windows® XP Professional x64 custom installed
HP Linux Installer Kit
Communications

integrated Broadcom 5764 PCIe LOM Controller
Broadcom NetXtreme Gigabit Ethernet Plus NIC (PCIe)
HP NC360T PCI Express Dual Port Gigabit NIC
Intel Gigabit CT Desktop NIC
Power supply

Power supply 850W 85% (BRONZE)
1110W 89% (SILVER)
Operating temperature

40° to 95° F (5° to 35° C
Dimensions

(H x W x D)
17.5 x 8.0 x 20.7 inches; 44.4 x 20.3 x 52.5 cm
Weight:
s depends upon configuration
Minimum config – 43 lb. (19.5 kg)
Typical config – 46 lb. (21 kg)
Maximum config – 64 lb. (29 kg)
