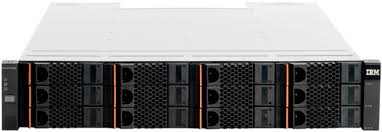

IBM Storwize V7000 12×3.5″ Midrange Disk System
- STORAGE CONTROLLER: dual-controller configurations for high availability.
- Drive bay: 12 x 3.5”
- Power supply: Fully redundant and hot-swappable
- Condition: Used
- Warranty: 1 year
The IBM Storwize V7000 is a high-performance, scalable storage solution designed for both SAN (Storage Area Network) and direct-attached environments. It supports a range of drives, including NVMe and SAS, and comes equipped with IBM Spectrum Virtualize for efficient storage management. The system offers robust data protection with features like Flash Copy, Metro Mirror, and Global Mirror, ensuring reliable disaster recovery capabilities.
Security:
- Data Encryption for secure data at rest and in transit.
- Remote Mirroring for data redundancy and protection across multiple sites.
Features:
-
Scalability: Supports up to 3,040 drives, offering flexible capacity expansion as your storage needs grow.
-
High Performance: Features 10 Gbps Ethernet and 16/25 Gbps Fiber Channel support for fast data access and low latency.
-
Storage Efficiency: Built-in thin provisioning, deduplication, and compression technologies help reduce storage costs by optimizing available space.
-
Data Protection: Advanced replication and backup features like Flash Copy, Metro Mirror, and Global Mirror ensure business continuity and disaster recovery.
-
Simplified Management: Centralized storage management through IBM Spectrum Virtualize, providing a unified interface for configuration and monitoring.
-
Reliability: Redundant and hot-swappable components ensure high availability and minimize downtime.
-
Flexible Storage Options: Supports a mix of flash and SAS drives, catering to both high-performance and high-capacity storage needs.
| Processor | dual Intel Xeon processors |
|---|---|
| Rack size | 2U |
| Controllers | two active-active controller nodes |
| System memory | 128 GB or up to 1,152 GB per control enclosure in a clustered system |
| Drive bay | 12 x 3.5” |
| fan | 2 Fully redundant, hot-swappable |
| Max Drive Count | 760 per control enclosure; 3,040 per clustered system |
| Max Raw Capacity (SAN) | up to 1.6PB (petabytes), which is achievable by scaling with additional drive enclosures and adding more disk drives to the system. |
| Drive option | 3.5-inch disk drives: |
| Protocol support | SAN or direct attached, 10 Gbps Ethernet (iSCSI), |
| I/O port | 10 Gbps Ethernet, 16 Gbps Fiber Channel, 25 Gbps Ethernet |
| Raid support | RAID 0, 1, 5, 6, and 10 |
| Power supply | Fully redundant and hot-swappable |
| Operating system | IBM Spectrum Virtualize software |
| Expansion enclosures | Model 12F/24F 2U 12 or 24 drive Model 92F 5U 92 drive |
| Dimensions | 12-bay enclosures 2076-112 and 2076-212 |
| Operation temperature | 10°C to 35°C (50°F to 95°F) |
| Data services | Virtualization of internal storage, data migration, data reduction pools |
