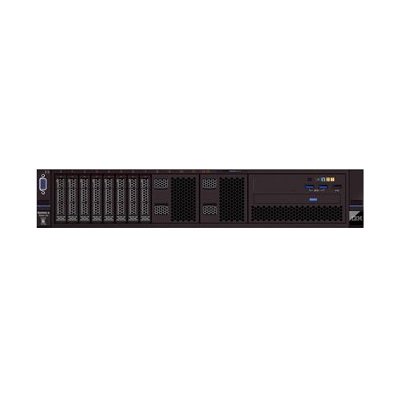

Lenovo System x3650 M5 8×2.5″
EGP23,900.00
- Machine type: 5462
- CPU: Intel® Xeon® Processor E5-2667 v3@3.20GHZ / 8 Core, 20 MB Cache, 16 Threads
- Total: 16 Core, 40 MB Cache, 32 Threads
- Ram: 64 GB DDR4
- Storage: (8*900 GB) 2.5 inch
- Raid 𝐂ontroller: ServeRAID M5210
- Lan Card: 4 port 1G built-in
- Power supply: ARTESYN 700-013701-0000 (900 W)
3 in stock
The Lenovo System x3650 M5 is engineered for business-critical environments, delivering exceptional performance and flexibility in a compact 2U form factor. Powered by the Intel Xeon E5-2600 v3 processor family, it supports up to two processors with a maximum of 18 cores each, providing up to 36 cores and 72 threads for superior multitasking. Additionally, its industry-leading storage capacity and pay-as-you-grow scalability make it an ideal choice for small-to-medium businesses and large enterprises alike. Furthermore, the server integrates advanced management tools and energy-efficient components, ensuring cost-effective operation and simplified deployment.
Features
- Processor and Performance: The x3650 M5 supports two processor sockets, each compatible with Intel Xeon E5-2600 v3 processors featuring up to 18 cores and 45 MB of L3 cache. Moreover, technologies like Intel Turbo Boost and Hyper-Threading enhance performance for peak workloads and multithreaded applications, while Intel AVX 2.0 accelerates enterprise-class tasks like databases.
- Memory: With 24 DDR4 DIMM slots (12 per processor), the server supports up to 1.5 TB of memory using 64 GB LRDIMMs or 768 GB with 32 GB RDIMMs. In addition, it achieves speeds of up to 2133 MHz with two DIMMs per channel, surpassing Intel’s specification by 12%, ensuring fast and reliable memory performance.
- Cooling and Fans: Equipped with six hot-swap redundant fans in a dual-zone cooling design, the x3650 M5 ensures reliable operation in environments up to 40°C. Meanwhile, the N+1 redundancy means the system remains operational even if a fan fails, enhancing uptime.
- Connectivity and Expansion: The server includes four integrated Gigabit Ethernet ports and optional 10 GbE ports via ML2 adapters. Additionally, it offers up to eight PCIe 3.0 slots plus a dedicated slot for a storage controller, reducing latency with Intel Integrated I/O Technology.
- Availability and Serviceability: Hot-swap drives, redundant power supplies, and fans boost uptime, while tool-less cover removal simplifies upgrades. Furthermore, Next Gen light path diagnostics and Proactive Platform Alerts enable quick issue resolution, minimizing downtime.
- Energy Efficiency: With 80 PLUS Titanium PSUs offering 96% efficiency at 50% load, low-voltage DDR4 DIMMs, and hexagonal ventilation holes for optimized airflow, the x3650 M5 reduces power consumption. Similarly, SSDs and Intel Intelligent Power Capability further enhance energy savings.
Manageability and security
Powerful systems management features simplify local and remote management of the x3650 M5:
-
The server includes an Integrated Management Module II (IMM2.1) to monitor server availability and perform remote management.
-
An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
-
XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs, and improve productivity through advanced server management capabilities.
-
An integrated Trusted Platform Module (TPM) enables advanced cryptographic functionality such as digital signatures and remote attestation.
-
System x Trusted Platform Assurance, an exclusive set of System x security features and practices, establishes a foolproof security foundation for workloads by delivering firmware that is securely built, tested, digitally signed, and verified prior to execution.
-
The server offers enterprise-class data protection with optional self-encrypting drives.
-
Industry-standard AES NI support offers faster, stronger encryption.
-
Intel Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supporting operating system.
-
Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.
For more details, you can view the data sheet on our website using the following link: Technical Guide
| Form factor | 2U |
|---|---|
| Processor | Up to two Intel Xeon processor E5-2600 v3 product family |
| No. Of processor socket | 2 |
| No. of fan | 2 |
| Support graphic card | Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors. |
| Ram type | DDR4 |
| Total Memory slots | 24 DIMMs slots |
| Supported ram | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Max memory | -With RDIMMs: Up to 768 GB with 24x 32 GB RDIMMs and two processors |
| PCle slots | Up to nine slots. Slots 4, 5, and 9 are the standard slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows: |
| Support Raid controller | -Onboard 6 Gb SATA: no RAID support |
| Support hard drive | Up to 28 SFF SAS/SATA hot-swap drive bays: |
| Network controller | -4x Integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719). |
| I/O Port | -Front: 1x USB 3.0 (8x 3.5" and up to 16x 2.5" drive bay models), 2x USB 2.0, and 1x VGA. |
| Power supply | -Up to two redundant hot-swap 550 W, 750 W, or 900 W (100-240V), or 1500 W (200-240V) High Efficiency Platinum AC power supplies. |
| Remote managment | UEFI, Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, light path diagnostics, Automatic Server Restart, ToolsCenter, XClarity Administrator. |
| Operating system | Microsoft Windows Server 2008 R2, 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 and 7; |
| Dimensions | Height: 86.5 mm (3.4 in) |
| Weight | Max : 34 kg (75 lb) |
| Operation temperature | 10°C to 35°C (50°F to 95°F) |
| Condition | Used |
| Warranty | 1 year |
