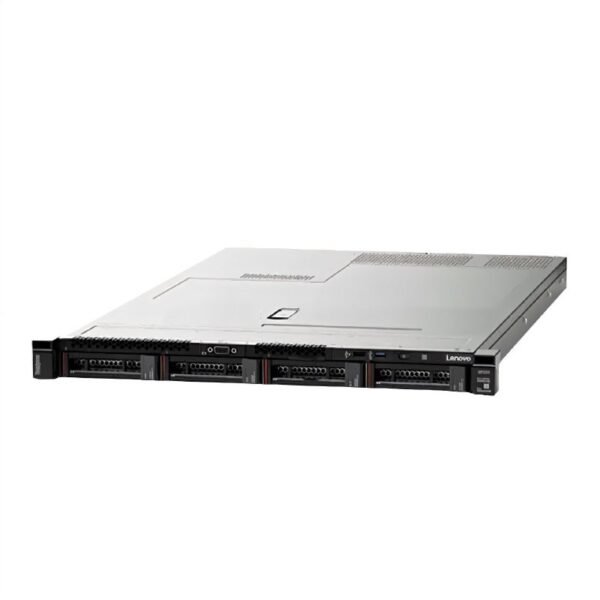

Lenovo ThinkSystem HR630X 4×3.5″
EGP34,200.00
- CPU: Dual (2) INTEL® XEON® Gold 6136@2.00GHZ / 12 core, 24.75 MB cache, 24 Threads
- Total: 24 cores, 49.5 MB caches, 48 Threads
- Ram: (64GB)
- Storage: (3×2TB) Sata
- Lan Card: intel X520 (10GB)
1 in stock
The Lenovo ThinkSystem HR630X is a cost-effective, 1U, two-socket server powered by Intel Xeon Skylake Server 2S processors and supporting up to 24 DDR4 DIMMs. Specifically, it features a 4×3.5-inch SATA/SAS/NVMe HDD front chassis configuration, complemented by an optional 2×2.5-inch rear expansion. Additionally, it boasts Platinum-rated redundant power supplies and an integrated BMC chip for seamless web-based out-of-band (OOB) management. Designed for simplicity and efficiency, this server excels as a storage server, file server, video server, enterprise server, or OA server.
Features
High Reliability:
- ECC DDR4 memory (2666/2400/2133/1866 MHz) ensures precise and dependable data transfer.
- RAID 0 and 1 support bolsters data protection.
- Hot-swap SATA/SAS/NVMe SSDs deliver flexible, secure, and high-speed storage solutions.
- A reliable, server-grade redundant power supply guarantees uninterrupted operation.
High Availability:
- Dual Intel Xeon Skylake processors, each with up to 28 cores and 10.4 GT/s UPI, provide exceptional processing power.
- 12 Gbps enterprise-class hard drives enhance subsystem I/O performance.
- OCP Mezz Ethernet support ensures outstanding network transmission and processing capabilities.
High Expandability:
- Offers 3 PCIe slots (or 1 PCIe slot plus 2×2.5” rear HDDs) for versatile hardware upgrades.
- Supports up to 24 DIMM slots, accommodating a maximum of 3TB RAM for robust memory capacity.
- Flexible storage options include 4×3.5” front bays and 2×2.5” rear bays, adapting to diverse needs.
High Manageability:
- Front USB interfaces (via adapter cable) enhance user accessibility and convenience.
- Automatic power-saving and noise-reduction fan technology optimizes energy use and minimizes noise.
- The BMC chip enables efficient web-based OOB management for streamlined administration.
Security
- Physical Security: A locked server cover (accessible only with a screwdriver), secured rack handles, and hot-swap drives/power supplies minimize unauthorized physical access.
- BIOS Security: Admin and User passwords (3-20 characters) alongside Secure Boot (Standard or Custom modes with key management for PK, KEK, db, dbx) safeguard firmware integrity.
- BMC Security: HTTPS access with SSL encryption, default credentials (lenovo/len0vO), user management, LDAP/AD/RADIUS integration, IPMI v2.0 compliance, privileged KVM access, and a 5-minute inactivity timeout ensure robust remote management security.
- Data Security: ECC DDR4 memory and RAID 0/1 configurations protect data integrity and availability.
- Operational Security: Remote power control via BMC, ESD protection protocols, battery safety warnings, and sensor monitoring for temperature, fans, and PSU maintain secure and stable operation.
| Form factor | 1U |
|---|---|
| Processor | Two Intel Xeon Skylake Server 2S supports up to 28 cores. |
| No. Of processor socket | 2 |
| Support graphic card | Integrated graphics chip with 16MB |
| Ram type | DDR4 |
| Total Memory slots | 24 DIMMs slots |
| Supported ram | 4 GB, 8 GB, 16 GB, 32 GB, 64, 128 GB |
| Max memory | Up to 3TB DDR4 2666/2400/2133/1866 MHz |
| PCle slots | Supports up to 3 PCIe slots |
| Support raid controller | including RAID 0, 1, for advanced data protection |
| Support hard drive | Front: Up to 4x 3.5-inch hot-swap SATA/SAS/NVMe HDDs. |
| Network controller | -One dedicated management chip (via RJ45 system management port) |
| I/O Port | COM x 1 |
| Power supply | 750W 1 + 1 hot-swap redundant power supply. |
| Remote management | • Embedded Web UI – Remote power on / off, system health, system information, alert notification and event log. |
| Operating system | Windows Server 2008 SP2 (x86) ) |
| Dimensions | -With rack handles |
| Operation temperature | 10°C to 35°C (50°F to 95°F) |
| Condition | Used |
| Warranty | 1 year |
