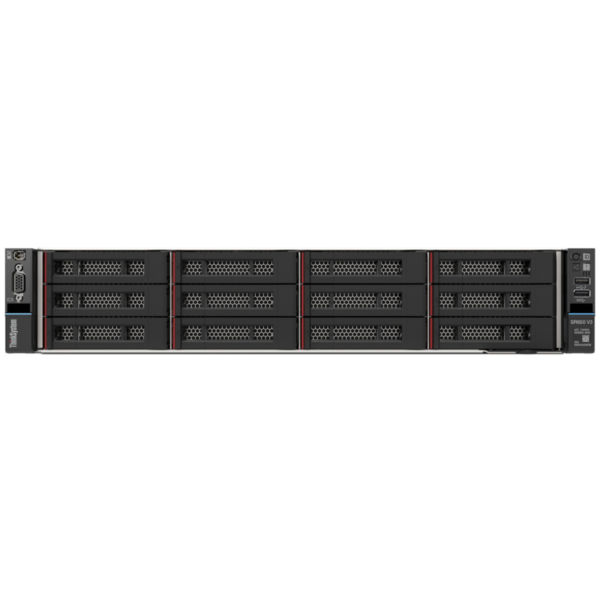

Lenovo ThinkSystem SR650 12×3.5″

The Lenovo ThinkSystem SR650 is a powerful, flexible, and scalable 2U rack-mounted server designed for medium to large enterprises, as well as managed and cloud service providers. It’s optimized for demanding compute-intensive workloads, offering high performance, superior scalability, and seamless management.

Features

Flexible Memory Support:

• The SR650 supports up to 7.5TB of memory, using Intel Optane™ DC Persistent Memory and up to 24 DIMM slots. Thus, it offers massive memory capacity to handle data-intensive tasks.

• It uses 2666MHz / 2933MHz TruDDR4 memory for high-speed processing and data access. Therefore, memory-intensive workloads can be executed with exceptional efficiency.

Scalability for Hybrid Cloud and Big Data:

• The SR650 is a solid foundation for Hyperconverged Infrastructure (HCI), Software-Defined Storage (SDS), Big Data analytics, and virtualized transactional systems (OLTP databases). In particular, it excels in workloads requiring scalability and high availability.

• It is optimized for transforming physical resources into services with validated hybrid cloud designs. Thus, it simplifies the implementation of cloud services and data management.

Graphics and Network Performance:

• The SR650 supports high-performance GPUs, allowing you to install two 300W GPUs, ideal for AI, machine learning, or high-performance computing (HPC) applications. As a result, it can handle GPU-accelerated workloads efficiently.

• ML2 NIC adapters with shared management provide flexible and high-speed networking options. This feature enhances network scalability and bandwidth.

Availability Features:

• Hot-swap/redundant drives, fans, and power supplies (PSUs) enhance reliability and ensure minimal downtime. As a result, the server maintains high availability.

• TPM 1.2/2.0 support for secure boot and cryptographic operations, ensuring data integrity and security.

Security

• XClarity Controller: Provides advanced service processor control, monitoring, and alerting for enhanced security.

• Trusted Platform Module (TPM): Offers cryptographic functionality like digital signatures and remote attestation, ensuring secure operations.

• Optional Trusted Cryptographic Module (TCM): Available in PRC, this module strengthens security by supporting more advanced cryptographic features.

• Lenovo Business Vantage: A suite of security tools that works with the Trusted Cryptographic Module, ensuring data protection.

• Enterprise-class Data Protection: Supports advanced RAID and self-encrypting drives to protect sensitive information.

• AES NI Support: Provides faster, stronger encryption using industry-standard AES NI support for enhanced data security.

• Intel Execute Disable Bit: Helps prevent buffer overflow attacks, improving system resilience against certain malicious threats.

• Intel Trusted Execution Technology: Protects against malicious software by isolating applications in a secure, protected space

For more details, you can view the data sheet on our website using the following link: Technical Guide
