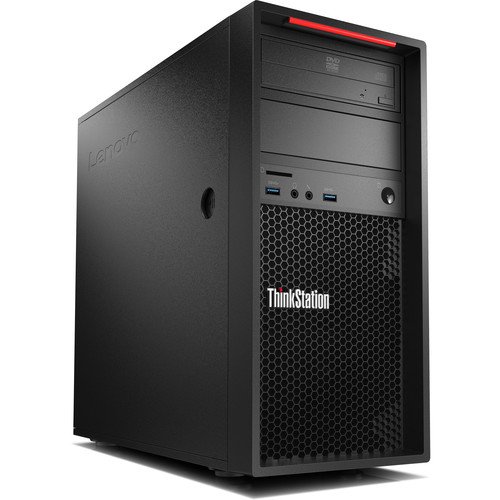

ThinkStation P410 Tower Workstation

ThinkStation P410 Tower Workstation

  • Brand: Lenovo
  • Model: P410 Tower Workstation
  • Condition: Used
  • Warranty: 1 year
Categories: , , Tags: , , , Brand:

The Lenovo ThinkStation P410 is a reliable and high-performance entry-level workstation designed for professionals in engineering, media, design, and other demanding fields. It combines Intel® Xeon® E5 v4 processing power, ECC DDR4 memory, and NVIDIA® Quadro® graphics to support intensive tasks like 3D modeling, CAD, and content creation. Certified by major ISVs, it’s built for compatibility and performance.

Security:

  • TPM 1.2 for hardware-level encryption

  • BIOS password protection

  • Chassis intrusion alerts

  • Physical security: Kensington lock slot and padlock loop

Features:

  • CPU: Intel® Xeon® E5-1600 v4 (up to 4 cores, 8 threads)

  • RAM: Up to 32GB DDR4 ECC

  • Storage: HDD/SSD or hybrid configurations

  • Graphics: Supports NVIDIA® Quadro® professional GPUs

  • Expansion: Tool-less chassis with multiple PCIe slots

  • Power: 450W power supply

  • Connectivity: USB 3.0, Gigabit Ethernet, audio ports, and more

  • Design: Compact tower with efficient cooling

For more details, you can find the datasheet on our website at the following link: Spec sheet

processor

Up to one 140W Intel Xeon E5-1600 v4 family processors. Some Intel Xeon
E5-2600 v4 processers are also available:
E5-2637 v4 4C/3.5GHz/15MB/135W/DDR4-2400
E5-2623 v4 4C/2.6GHz/10MB/85W/DDR4-2133
E5-2620 v4 8C/2.1GHz/20MB/85W/DDR4-2133
E5-1680 v4 8C/3.4GHz/20MB/140W/DDR4-2400 333
E5-1660 v4 8C/3.2GHz/20MB/140W/DDR4-2400
E5-1650 v4 6C/3.6GHz/15MB/140W/DDR4-2400
E5-1630 v4 4C/3.7GHz/10MB/140W/DDR4-2400
E5-1620 v4 4C/3.5GHz/10MB/140W/DDR4-2400
E5-1607 v4 4C/3.1GHz/10MB/140W/DDR4-2133
E5-1603 v4 4C/2.8GHz/10MB/140W/DDR4-2133
Processor core

from 4 to 8 cores, depending on the model.
Processor count

single
Chipset

Intel C612 Platform Controller Hub (PCH)
Form factor

tower
Memory type

DDR4
Memory slots

4 DIMM sockets. 4-channel capable
PCLe slots

Two PCIe 3.0 x16 slots
Expansions slots

Slot 1 PCIe 3.0 x16, full length, full height
Slot 2 PCIe 3.0 x8, full length, full height
Slot 3 PCIe 3.0 x16, full length, full height
Slot 4 PCIe 2.0 x4, half length, full height
Max memory

128GB (32GB x 4)
Graphics

up to two NVIDIA Quadro M4000, or up to one Quadro P5000
Supporting Graphics and GPU computing

Adapter Cores Memory Power Connector*** SLI
NVS 310 48 1GB 19.5W 2xDP
NVS 315 48 1GB 19.5W 2xDVI-I SL/2xDP
NVS 510 192 2GB 35W 4xmini DP
NVS 810 1024 4GB 68W 8xmini DP
Quadro K420 192 2GB 41W DVI-I DL+DP
Quadro K620 384 2GB 45W DVI-I DL+DP
Quadro K1200 512 4GB 45W 4xmini DP
Quadro M2000 768 4GB 75W 4xDP
Quadro M4000 1664 8GB 120W 4xDP
Quadro M5000 2048 8GB 150W DVI-I DL+4xDP
Quadro P400 256 2GB 30W 3xminiDP
Quadro P600 384 2GB 40W 4xminiDP
Quadro P1000 640 4GB 47W 4xminiDP
Quadro P2000 1024 5GB 75W 4xDP
Quadro P4000 1792 8GB 105W 4xDP SLI
Quadro P5000 2560 16GB 180W DVI-D DL+4xDP
I/O port

Front ports
Two USB 3.0, microphone
(3.5mm), headphone
(3.5mm)
0, microphone
(3.5mm), headphone
(3.5mm)
Media reader
9-in-1
USB 2.0
card
reader. Option
al 29-
in-1
USB 2.0
card
reader
on flex
module
Additional ports :
Two IEEE 1394 (one on rear and one on front flex
module) via PCIe adpater, up to
one adapter per system. Two rear USB 3.0 per PCIe adapter, up to three
adapters per system. One rear Thunderbolt via PCIe adapter, or two front
Thunderbolt (on flex module)
via PCIe adapter, front and rear Thunderbolt cannot
be intermixed. One rear serial via cable, up to one per system. One front eSATA (on flex module), or one rear
eSATA via cable and PCIe slot
bracket, up to one eSATA port per system
Drive bay

4 x 3.5”
Storage options

Two external 5.25" flex bays, two internal 3.5" bays. Up to one 9.5mm optical
plus four 3.5"/2.5" disk drives plus three M.2 PCIe SSD (see right)
3.5" HDD, 7.2K SATA6Gbs: 500GB/1TB/2TB/3TB/4TB/6TB, 1TB/2TB hybrid
2.5" HDD, 10K SAS12Gbs : 300GB/600GB
2.5" SSD, SATA6Gbs :
180GB/240GB/256GB/480GB/512GB with OPAL, 256GB/512GB/1TB without OPAL
PCIe SSD, M.2 via PCIe 3.0 x4 adapter: 256GB/512GB/1TB, NVMe
Storage controller

RAID 0, 1, 5, 10 with onboard SATA controller in chipset, SATA 6Gb/s. Optional RAID 0, 1, 10 with optional LSI 9340-8i PCIe adapter, 12Gb/s SAS
and SATA, optional upgrade to RAID 5 is available
Audio

Realtek ALC662 codec for its HD Audio
Operating system

Windows 7 32bit, Windows 8 64bit
Windows 10 64bit
Communications

One onboard gigabit ethernet, Intel I218LM, supports Wake-on-LAN. Optional
discrete ethernet adapters are available
Power supply

One fixed 450 watts, autosensing, 92%, 80 PLUS Platinum qualified
Operating temperature

50 o F to 95 o F (10 o C to 35 o C)
Dimensions

• 6.89"W x 16.77"D x 14.8"H
• 175mm W x 426mm D x 376mm H
• 30.86 lb (14kg) max configuration
• 25-liter
